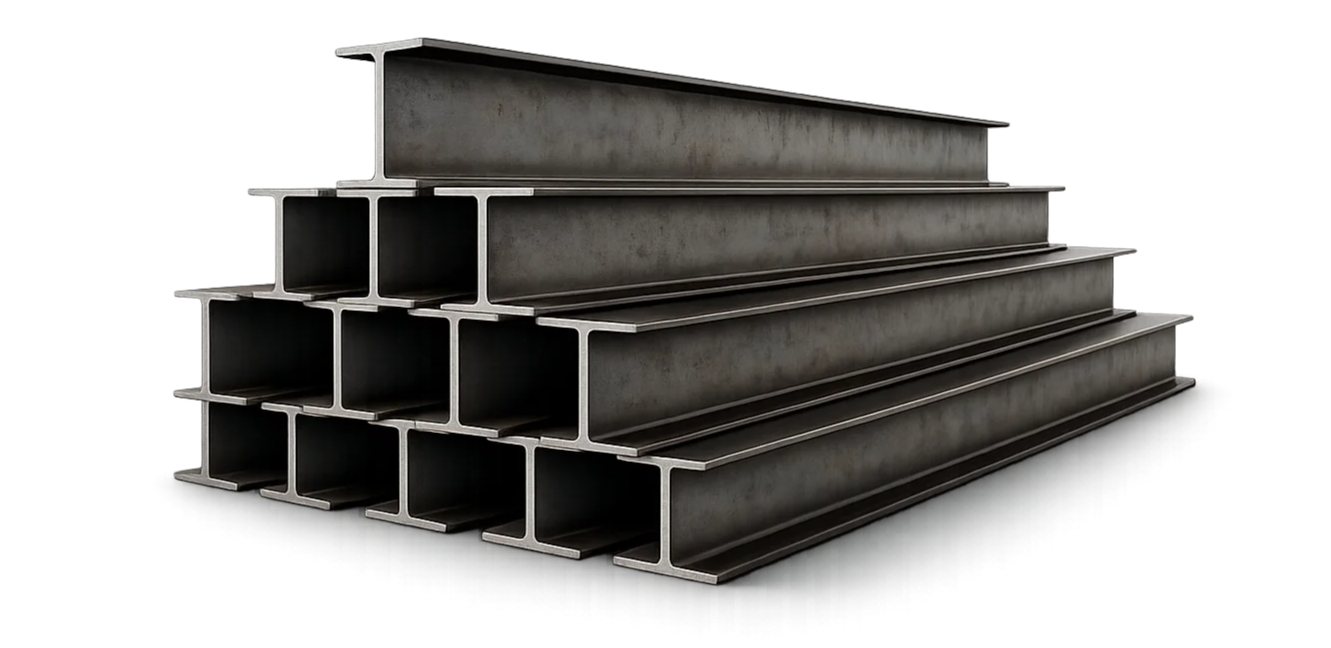

Steel Beams

Premium Steel Beams

Engineered for high load-bearing performance, dimensional accuracy, and structural stability in industrial and infrastructure projects.

About Product

We offer premium quality steel beams designed for high load-bearing performance in industrial, commercial, and infrastructure projects. These beams are manufactured with strict dimensional accuracy and consistent mechanical properties.

Available in multiple sizes and grades, our beams are suitable for building frames, bridges, platforms, sheds, and heavy structural applications where strength, durability, and long service life are essential.

Dimensions

ISMB 100 to ISMB 600

Thickness

Web: 4.5mm - 12.5mm

Steel Grade

E250BR, E350BR & E410

Applications

Building Frames

Building Frames

Used as primary load-bearing members in commercial and industrial buildings.

Bridge Works

Bridge Works

Applied in bridge construction where high strength and stability are required.

Plant Structures

Plant Structures

Widely used in factory sheds, plant structures, and heavy support systems.

Platform Supports

Platform Supports

Suitable for mezzanine floors, service platforms, and elevated walkways.

Infrastructure Use

Infrastructure Use

Used in metro, railway, and public infrastructure structural frameworks.

Machine Foundations

Machine Foundations

Provides rigid support beams for machinery foundations and equipment bases.

Product Features

Accurate Beam Profile

Precision-rolled beam profile with consistent section dimensions for proper fitment.

Uniform Thickness Control

Maintains thickness consistency across lots for stable mechanical performance.

Durable Surface Finish

Quality steel grade and finish help improve service life in industrial environments.

High Load Bearing Capacity

Engineered to support heavy structural loads in demanding construction works.

Assured Quality Checks

Produced under controlled checks for dimensional accuracy and batch consistency.

Fabrication Friendly

Supports cutting, drilling, welding, and assembly with dependable on-site handling.

Available in Multiple Sizes

Offered in multiple beam sizes to meet light, medium, and heavy-duty project needs.

Technical Details

I - BEAMS

Beams 100x50 upto 250x125 , in Grade E 250 A & E 350 A

SIZEAVERAGE WEIGHT
 KG/MTRKG/FT
ISMB 100X508.92.713
ISMB 125X7013.34.055
ISMB 150X7515.04.573
ISMB 175X8519.65.976
ISMB 200X10024.27.378

SPECIAL LIGHT BEAMS
SIZEAVERAGE WEIGHT
 KG/MTRKG/FT
100X505.51.677
125X708.72.652
150X7511.83.598

H -BEAMS

We supply these H Beams to government of India for State Electrification and Railway electrification. HB150*, SC150* in Grade E 250 A & E 350 A

Rolling and Cutting Tolerance

WebFlangeSectional WeightLength
UPTO 200 MMUPTO 100 MM : +/- 2 MMFOR FIX LENGTH
: + 3 MM /- 2 MM100 TO 125: +/- 2.5 MM: +/- 2.5 %:+/- 100 MM
125 TO 150: +/- 4 MM

Chemical Composition

GradeC %Mn %S %P %Si %CE Value
MS E-250 A0.231.500.0450.0450.400.42
HT E-350 A0.201.550.0450.0450.450.47
Tolerance0.020.050.0050.0050.030.03

Mechanical Properties

Tensile StrengthYield Stress% Elongation atBend Test
 MIN, MPAMIN ,MPAGAUGE LENGTH 5.65MIN
MM <2020-40>40MIN
MS E-250 A410250240230232t
HT E-350 A490350330320222t
Tolerance

Steel Beams
